Q- 22,118400M-HC49USSMD-F-30-30-D-16-TR | Auris

Crystal, 22.1184 MHz, 16 pF, ±30 ppm, 25 Ω, SMD, Q- 22,118400M-HC49USSMD-F-30-30-D-16-TR

Order No.: 78D1184
EAN: 4099879148971
MPN:
Q- 22,118400M-HC49USSMD-F-30-30-D-16-TR
Series: HC49USSMD
Auris
Q- 22,118400M-HC49USSMD-F-30-30-D-16-TR Auris Quartze
Image may differ
Print
Key Specification:
Frequency 22.1184 MHz
Frequency stability +/-30
Tolerance ±30 ppm
Load Capacity 16 pF
ESR (Equivalent Series Resistance) 25 Ω
Show variants: 20
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1892 € *
Available: 575 pcs.
Total Price:
1.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
0.1892 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

SMD resonators, type Auris HC49USSMD.

Frequency tolerance: ±30 ppm at +25 °C. Temperature tolerance: ±30 ppm. Operating temperatures: –20 to +70 °C. Parallel capacitance: max. 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±5.0 ppm/year.


Technical attributes (frequency, load capacitance): 22.11840 MHz, 16 pF
Technical specifications
Frequency 22.1184 MHz
Frequency stability +/-30
Tolerance ±30 ppm
Load Capacity 16 pF
ESR (Equivalent Series Resistance) 25 Ω

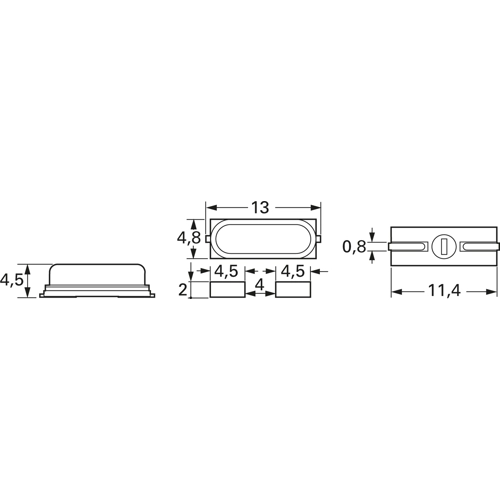

Assembly SMD
Length 13 mm
Width 4.8 mm
Height 4.5 mm
min. operating temperature -20 °C
max. operating temperature 70 °C
Number of connection pads 2
Articles of same specification 0
Logistics
Original Packaging Reel with 1,000 pieces
Customs tariff number 85416000
Country of origin CN
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
