Q- 14,745600M-HC6035/4-F-30-50-E-16-TR | Auris
Crystal, 14.7456 MHz, 16 pF, ±30 ppm, 60 Ω, SMD, Q- 14,745600M-HC6035/4-F-30-50-E-16-TR
Order No.: 77D9647
EAN: 4099879148506
MPN:
Q- 14,745600M-HC6035/4-F-30-50-E-16-TR
D12555
Series: HC6035
Unit Price (€ / pc.)
1.3090 € *
Available: 94 pcs.
Total Price:
13.09 € *
Price list
Quantity
Price per unit*
10 pcs.
1.3090 €
50 pcs.
1.1543 €
250 pcs.
0.9996 €
1000 pcs.
0.8687 €
2500 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD resonators, seam-welded ceramic package, type Auris HC6035/4.
Frequency tolerance: ±30 ppm at +25 °C. Load capacitance: 16 pF. Parallel capacitance: 7.0 pF. Insulation resistance: 500 Mohm. Aging: ±3.0 ppm/year.
With temperature range –40 to +85 °C.
Type: 14.745600 MHz
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Frequency | 14.7456 MHz | |
| Frequency stability | +/-50 | |
| Tolerance | ±30 ppm | |
| Load Capacity | 16 pF | |
| ESR (Equivalent Series Resistance) | 60 Ω | |
| Assembly | SMD | |

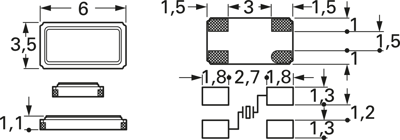

| Length | 6 mm | |
| Width | 3.5 mm | |
| Height | 1.1 mm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Number of connection pads | 4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85416000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
