RB25 5% 3R3 | ATE ELECTRONICS
Wirewound resistor, 3.3 Ω, 25 W, ±5 %, RB25 5% 3R3
Unit Price (€ / pc.)
4.1888 € *
Available: 29 pcs.
Total Price:
4.19 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1888 €
10 pcs.
3.8794 €
100 pcs.
3.6652 €
500 pcs.
3.4510 €
1000 pcs.
3.2844 €
*incl. VAT plus shipping costs
Subject to prior sale
Wire-wound power resistors, 25 W, tolerance 5.0 %, type ATE RB 25.
High thermal conductivity, excellent heat dissipation due to aluminum profile heatsink, certified to MiL-PRF-18546 G

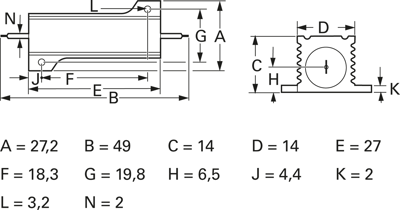

Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 3.3 Ω | |
| Width | 27 mm | |
| nominal load capacity without cooling surface | 12.5 W | |
| Tolerance | ±5 % | |
| Temperature coefficient | 50 ppm/K | |
| max. operating temperature | 250 °C | |
| Power | 25 W | |
| min. operating temperature | -55 °C | |
| Version | high load wire resistor | |
| Assembly | chassis mounting | |
| Design | chassis | |
| Height | 14 mm | |
| Length | 27.2 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
