RB25 5% 0R1 | ATE ELECTRONICS

Name: Wirewound resistor, 100 mΩ, 25 W, ±5 %, RB25 5% 0R1
Brand: ATE ELECTRONICS
SKU: 63E4692
Availability: InStock

Wirewound resistor, 100 mΩ, 25 W, ±5 %, RB25 5% 0R1

Order No.: 63E4692

EAN: 4099879701329

MPN:

RB25 5% 0R1

Series: RB25

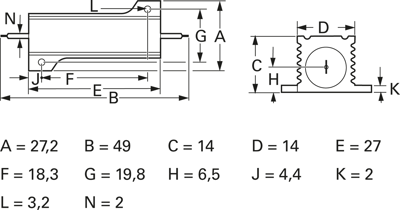

Image may differ

Key Specification:

ohmic resistance 100 mΩ

Tolerance ±5 %

Power 25 W

Design chassis

Assembly chassis mounting

NCNR (non cancelable / non returnable)

Unit Price (€ / pc.)

3.1416 € *

Standard delivery time from the manufacturer is: 8 Weeks

Total Price:

188.50 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Wire-wound power resistors, 25 W, tolerance 5.0 %, type ATE RB 25.

High thermal conductivity, excellent heat dissipation due to aluminum profile heatsink, certified to MiL-PRF-18546 G

Technical specifications

Filter	Property	Value
	ohmic resistance	100 mΩ
	Tolerance	±5 %
	Power	25 W
	Design	chassis
	Assembly	chassis mounting
	Version	high load wire resistor
	Temperature coefficient	±100 ppm/K
	min. operating temperature	-55 °C
	max. operating temperature	250 °C
	nominal load capacity without cooling surface	12.5 W
	Length	27 mm
	Width	27.2 mm
	Height	14 mm
