RB150 5% 0R22 | ATE ELECTRONICS
Wirewound resistor, 220 mΩ, 150 W, ±5 %, RB150 5% 0R22
Unit Price (€ / pc.)
17.9928 € *
Next delivery: 4 pcs. on 2025-09-19
Total Price:
17.99 € *
Price list
Quantity
Price per unit*
1 pcs.
17.9928 €
10 pcs.
16.6600 €
100 pcs.
15.7199 €
500 pcs.
14.8274 €
1000 pcs.
14.1253 €
*incl. VAT plus shipping costs
Subject to prior sale
150 W, tolerance 5.0 %, type ATE RB 150.

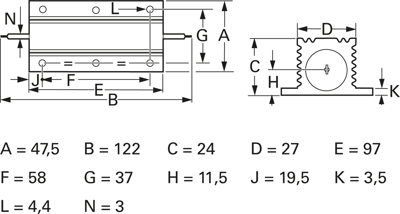

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 24 mm | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 250 °C | |
| Version | high load wire resistor | |
| Assembly | chassis mounting | |
| Power | 150 W | |
| nominal load capacity without cooling surface | 55 W | |
| Tolerance | ±5 % | |
| Temperature coefficient | ±100 ppm/K | |
| Width | 47.5 mm | |
| Design | chassis | |
| Length | 97 mm | |
| ohmic resistance | 220 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85332100 |
| Country of origin | IT |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
