RB101 5% 8R2 | ATE ELECTRONICS

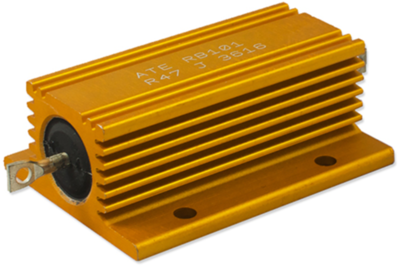

Wirewound resistor, 8.2 Ω, 100 W, ±5 %, RB101 5% 8R2
Unit Price (€ / pc.)
10.4363 € *
Standard delivery time from the manufacturer is: On Request
100 W, tolerance 5.0 %, type ATE RB 101.
Rated load with/without heatsink: 100/40 W. Breakdown voltage: 1900 V. Dielectric strength: 3500 VAC. Insulation resistance: 10 Gohm. Overload: 5 x rated load for 5.0 s. Dimensions: A 47.5 B 89, C 24, D 27, E 64, F 35, G 37, H 11.5, J 14.5 K 3.5, L 4.4, N 3.0. Connection: 3.2 mm diameter.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 8.2 Ω | |
| Width | 47.5 mm | |
| nominal load capacity without cooling surface | 40 W | |
| Tolerance | ±5 % | |
| Temperature coefficient | 50 ppm/K | |
| max. operating temperature | 250 °C | |
| Power | 100 W | |
| min. operating temperature | -55 °C | |
| Version | high load wire resistor | |
| Assembly | chassis mounting | |
| Design | chassis | |
| Height | 24 mm | |
| Length | 64 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
