V8632 | Assmann WSW
Heat conducting foil, V8632
Unit Price (€ / pc.)
1.0234 € *
Available: 830 pcs.
Total Price:
1.02 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0234 €
10 pcs.
0.9044 €
50 pcs.
0.8449 €
100 pcs.
0.7973 €
1000 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Ceramic heat conducting foils for semiconductors, type Assmann C20.
For all standard applications; Features: silicon foil with high-grade glass fiber-reinforced ceramic filling, very low thermal transfer resistance, very flexible, non-combustible to UL 94 V-0, application of thermal transfer compound is not necessary. Material thickness: 0.2 mm. Color: dark red. Thermal transfer resistance: 0.30 to 0.35 °C. Tensile strength: 25.9 MPa. Tear resistance: 70 kN/m. Contact resistance: 1.8 x 10^12 ohm x m. Dielectric strength: 2.0 kV. Operating temperatures: –60 to +200 °C.
Standard version, type V86.

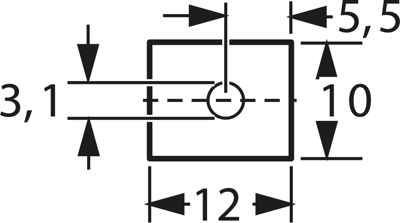

Technical attributes (type, for package size, dimensions): V8632, TO 126/SOT 32, 12 x 10 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Dielectric strength | 2000 V/mm | |
| Suitable for | SOT-32 | |
| Width | 10 mm | |
| Material | silicone | |
| max. operating temperature | 200 °C | |
| min. operating temperature | -60 °C | |
| Version | heat conducting disc | |
| Thickness | 0.2 mm | |
| Length | 12 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85471000 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
