V8612 | Assmann WSW
Heat conducting foil, V8612
Unit Price (€ / pc.)
1.2852 € *
Available: 133 pcs.
Next delivery: 100 pcs. on 2026-01-23
Total Price:
12.85 € *
Price list
Quantity
Price per unit*
10 pcs.
1.2852 €
50 pcs.
1.1305 €
250 pcs.
0.9758 €
1000 pcs.
0.8568 €
2500 pcs.
0.7854 €
*incl. VAT plus shipping costs
Subject to prior sale
Ceramic heat conducting foils for semiconductors, type Assmann C20.
For all standard applications; Features: silicon foil with high-grade glass fiber-reinforced ceramic filling, very low thermal transfer resistance, very flexible, non-combustible to UL 94 V-0, application of thermal transfer compound is not necessary. Material thickness: 0.2 mm. Color: dark red. Thermal transfer resistance: 0.30 to 0.35 °C. Tensile strength: 25.9 MPa. Tear resistance: 70 kN/m. Contact resistance: 1.8 x 10^12 ohm x m. Dielectric strength: 2.0 kV. Operating temperatures: –60 to +200 °C.
Standard version, type V86.

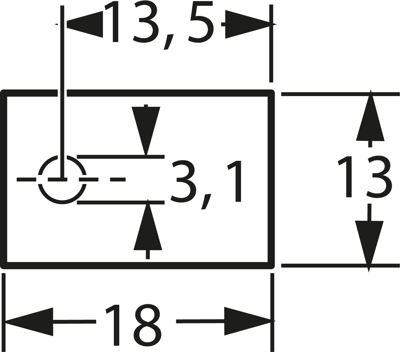

Technical attributes (type, for package size, dimensions): V8612, TO 220, 18 x 13 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 13 mm | |
| min. operating temperature | -60 °C | |
| max. operating temperature | 200 °C | |
| Dielectric strength | 2000 V/mm | |
| Thickness | 0.2 mm | |
| Length | 18 mm | |
| Version | heat conducting disc | |
| Suitable for | TO-220 | |
| Material | silicone |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85471000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
