11104 | as-Schwabe

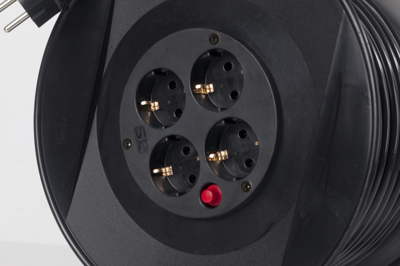

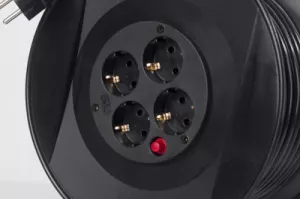

Cable reel, 4-way, 25 m, 16 A, black, 11104
Order No.: 07L5103
EAN: 4011160111044
MPN:
11104
Unit Price (€ / pc.)
59.976 € *
Standard delivery time from the manufacturer is: 2 Weeks
Cable reels with plastic insulated cables, type as-Schwabe 111.
For indoor use, made of rugged and break-proof special plastic. Shock absorbing, galvanized base frame, holding brake, VDE thermal safety switch with automatic function, 4 Schuko-style outlets; Tests: to VDE and GS. Degree of protection IP 20. Cable type: H05VV-F3G1.5 mm². Rating: 16 A/250 V.
Technical attributes (type, cable length, drum diameter, weight): 11104, 25 m, 230 mm, 3.25 kg
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable length | 25 m | |
| Number of sockets | 4 | |
| Master-Slave | No | |
| Overvoltage protection | No | |
| Can be switched off | No | |
| USB connection | No | |
| Rated current | 16 A | |
| Degree of protection (IP) | IP20 | |
| Colour | black | |
| Material | plastic |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
