A000067 | Arduino
Arduino Board Mega 2560 REV3 A000067
Unit Price (€ / pc.)
45.8150 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
45.82 € *
Price list
Quantity
Price per unit*
1 pcs.
45.8150 €
10 pcs.
44.8035 €
60 pcs.
38.9130 €
*incl. VAT plus shipping costs
Subject to prior sale

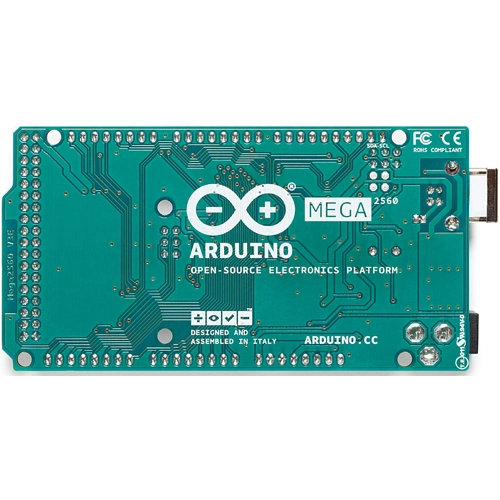

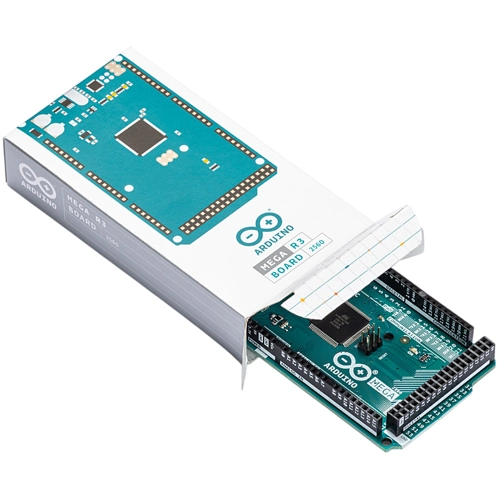

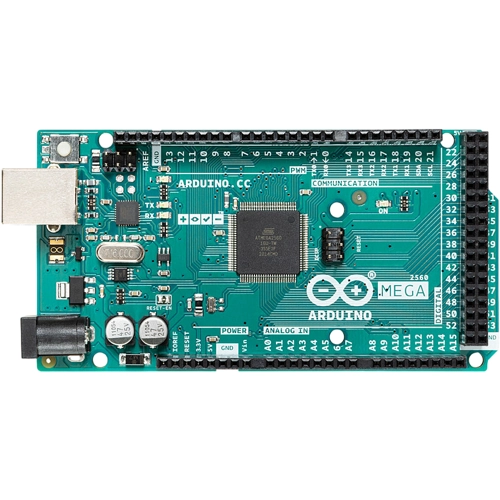

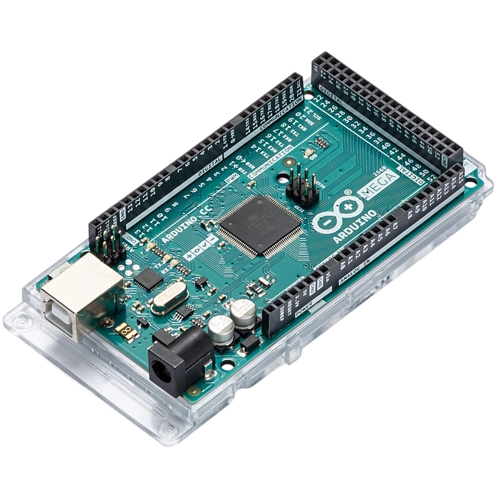

Arduino Board Mega 2560 Rev3, A000067, Arduino
The Arduino Mega 2560 is a microcontroller board based on the ATmega2560. It has 54 digital input/output pins (of which 15 can be used as PWM outputs), 16 analog inputs, 4 UARTs (hardware serial ports), a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega 2560 board is compatible with most shields designed for the Uno and the former boards Duemilanove or Diecimila.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | extension board | |
| Interfaces | USB | |
| Processor core | ATmega2560 | |
| MPU interface | UART, SPI, I²C, PWM, analogue | |
| IC controller/driver | ATmega16u2 | |
| Memory size | 256 KB | |
| Connection | USB, power jack, ICSP header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IT |
| Customs tariff number | 84733080 |
Compliance
| Property | Value |
|---|---|
| Electrical equipment take-back |  |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
