421-001-50 | apra

Aluminum Profile enclosure, (L x W x H) 160 x 164.6 x 58.2 mm, black (RAL 9005), IP65, 421-001-50

Order No.: 70H4419
EAN: 4099891611699
MPN:
421-001-50
Series: XDREAM2U
421-001-50 apra General Purpose Enclosures Image 1
421-001-50 apra General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
40.0078 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
40.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.0078 €

Enclosure profile, 421-001-50, apra

Features

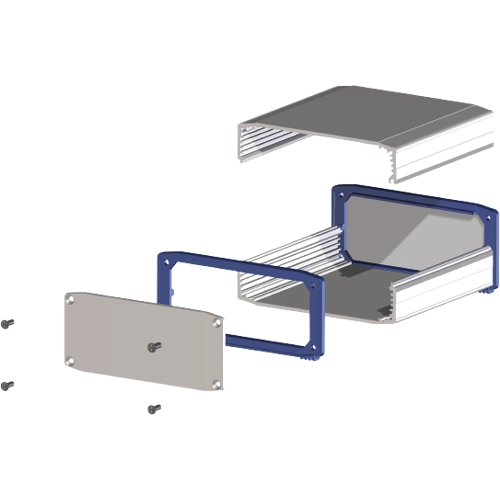

  • Double-leaf aluminium profile enclosure
  • Sealing frame in 5 colours with integrated anti-slip enclosure feet between enclosure and front / rear panel
  • Conductive interior, powder coated on the outside
  • IP 65 with monted sealing frame
Technical specifications
Filter Property Value
Material aluminum
Width 164.6 mm
Degree of protection (IP) IP65
Length 160 mm
Height 58.2 mm
RAL number 9005
Colour black
Logistics
Property Value
Customs tariff number 85381000
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
