245-315-21 | apra
Subrack, with handle, chromated, die-cast aluminum, (L x W x H) 236 x 427 x 133 mm, 84 HP, 245-315-21
Order No.: 82H134
EAN: 4099889576061
MPN:
245-315-21
24-5315-21
Unit Price (€ / pc.)
74.8867 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
74.89 € *
Price list
Quantity
Price per unit*
1 pcs.
74.8867 €
10 pcs.
67.4016 €
*incl. VAT plus shipping costs
Subject to prior sale
Subrack, 245-315-21, apra
For inserting modules to IEC 297-3 and IEEE 1101.10/1101.11; EU-style cards: 100 x 160 mm, Side walls: 2.5 mm aluminum, Module rails and front brackets: aluminum profiles. Transparent chromalized side panels and profiles.. Delivery form: Kit consisting of 2 front horizontal rails, 2 rear horizontal rails, 2 side walls, 2 front brackets with or without handle, 8 pan-head screws with underhead teeth, 2 threaded strips M 2.5 (7.0 x 2.0 mm), 2 threaded strips M 2.5 (5.0 x 1.5 mm), assembly instructions.
3U, design 2, type 245.
Version: at the front standard module rail 241-022, at the rear BUS module rail 241-013.

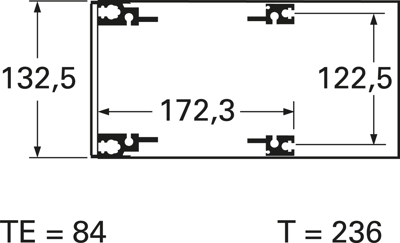

Technical attributes (type, width (HP), depth (D), version): 24-5315-21, 84 HP, D 236 mm, with handle.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 133 mm | |
| Version | with handle, chromated | |
| Material | die-cast aluminum | |
| Width | 427 mm | |
| cutting pitch differential | 84 HP | |
| Length | 236 mm | |
| Product type | subrack |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
