245-312-11 | apra

Subrack, 245-312-11, apra

For inserting modules to IEC 297-3 and IEEE 1101.10/1101.11; EU-style cards: 100 x 160 mm, Side walls: 2.5 mm aluminum, Module rails and front brackets: aluminum profiles. Transparent chromalized side panels and profiles.. Delivery form: Kit consisting of 2 front horizontal rails, 2 rear horizontal rails, 2 side walls, 2 front brackets with or without handle, 8 pan-head screws with underhead teeth, 2 threaded strips M 2.5 (7.0 x 2.0 mm), 2 threaded strips M 2.5 (5.0 x 1.5 mm), assembly instructions.

3U, design 1, type 245.

The respective profiles are described below in detail under module accessories; Version: at the front the standard module rail profile 241-022, at the rear the narrow module rail with integrated mounting rail profile 241-019 for DIN 41612 connectors.

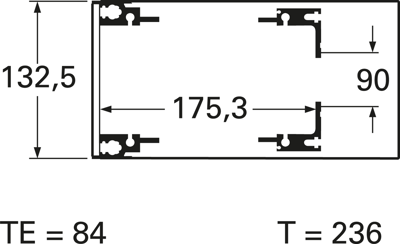

Technical attributes (type, width (HP), depth (D), version): 24-5312-11, 84 HP, D 236 mm, without handle.
