5238WCD | APEM

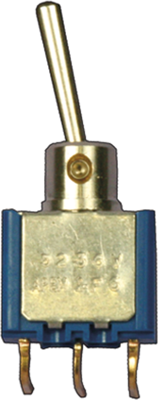

Toggle switch, metal, 1 pole, latching/groping, On-Off-(On), 0.4 VA/20 V AC/DC, gold-plated, 5238WCD
Unit Price (€ / pc.)
4.7005 € *
Available: 0 pcs.
Leadtime: 12 Weeks **
Total Price:
470.05 € *
Price list
Quantity
Price per unit*
100 pcs.
4.7005 €
500 pcs.
4.5101 €
1000 pcs.
4.2245 €
*incl. VAT plus shipping costs
**Subject to prior sale
Toggle switches for PCB mounting, type APEM 5000.
Breaking capacity: 0.4 VA to 20 V AC/DC. Insulation resistance: min. 1000 Mohm on 500 VDC. Contact resistance (start value): max. 10 mohm. Material housing: diallyl phtalate. Lever: chrome-plated brass. Socket: nickel-plated brass. Contacts: tinned brass. Operating temperatures: –40 to +85 °C.
With angled solder pins for horizontal mounting, type 5200W.
Grid: 4.7 mm.
Technical attributes (type, number of poles, switching functions OFF, ON, momentary on, momentary (M)): 5238WCD, single-pole, ON-OFF-M
Technical specifications
| Connection | Leiterplattenanschluss | |
| Design | liegend | |
| illuminated | No | |
| Actuator colour | metall | |
| contact surface | vergoldet | |
| Pin number | 1-polig | |
| Latching switching function | rastend/tastend | |
| Breaking capacity | 0,4 VA/20 V AC/DC | |
| Shift position | Ein-Aus-(Ein) |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
