3649NF/2 | APEM

Toggle switch, metal, 2 pole, latching, On-Off-On, 12 A/28 VDC, silver-plated, 3649NF/2

Order No.: 12G2179
EAN: 4099889181166
MPN:
3649NF/2
Series: 3600NF

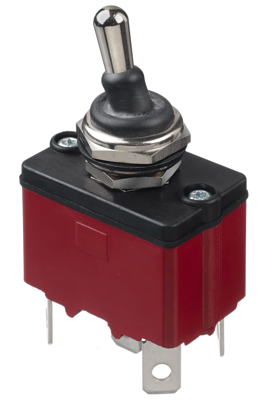

3649NF/2 APEM Toggle Switches
Image may differ
Unit Price (€ / pc.)
21.6223 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2,702.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
125 pcs.
21.6223 €

Toggle switch, 3649NF/2, APEM

The 3649NF/2 toggle switch, with its sleek and compact design, is the perfect solution for your electrical control needs. With its double pole configuration, it ensures optimum performance and reliability. The switch offers a range of electrical functions which allows to easily switch between ON, OFF, and ON positions with ease.

Features

  • Sealed to IP67
  • Solid silver contacts
  • UL approved
Technical specifications
Latching switching function latching
Pin number 2 pole
Shift position On-Off-On
Actuator colour metal
illuminated No
Connection solder connection
Design vertical
contact surface silver-plated
Type of mounting central Mounting
Breaking capacity 12 A/28 VDC
Protection class IP67
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
