12147A | APEM

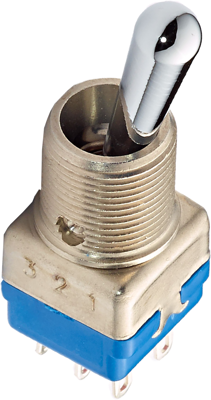

Toggle switch, 2 pole, groping, (On)-Off-(On), 4 A/125 VAC, 30 VDC, silver-plated
Product by APEM at Bürklin Elektronik
Toggle switches for demanding applications, type APEM 12000.
Rugged device for extreme operating conditions, with 11.9 mm (15/32) threaded bush; Breaking capacity: 2.0 A/250 VAC, 4.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance: max. 10 mohm. Insulation resistance: min. 1000 Mohm on 500 VDC. Connections: solder lugs. Contact material: silver. Lever: chrome-plated brass. Socket: nickel-plated brass. Housing: DAP. Operating temperatures: –40 to +85 °C. Certifications: QPL, MUAHAG, CECC 96201-005, CECC 96201-008, MiL.
With silver-plated contacts.
Technical attributes (type, number of poles, switching action break (OFF), make (ON), momentary on (M)): 12147A, double-pole, M-OFF-M
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 2 pole | |
| Latching switching function | groping | |
| Breaking capacity | 4 A/125 VAC, 30 VDC | |
| Shift position | (On)-Off-(On) |
| Country of origin | FR |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
