11136A | APEM

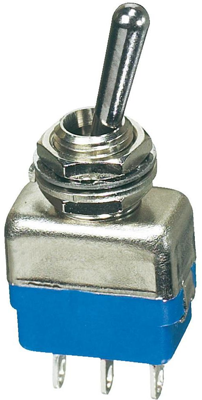

Toggle switch, 1 pole, latching, On-On, 4 A/125 VAC, 30 VDC, silver-plated
Toggle switches for demanding applications, type APEM 11000.
Rugged device for extreme operating conditions, with 6.35-40UNS threaded; Breaking capacity: 2.0 A/250 VAC, 4.0 A/125 VAC, 4.0 A/30 VDC. Contact resistance: max. 10 mohm. Insulation resistance: min. 1000 Mohm on 500 VDC. Connections: solder lugs. Contact material: silver. Lever: chrome-plated brass. Socket: nickel-plated brass. Housing: DAP. Operating temperatures: –40 to +85 °C. Certifications: QPL, MUAHAG, CECC 96201-005, CECC 96201-008, MiL.
Technical attributes (type, number of poles, switching action make (ON)): 11136A, single-pole, ON-ON
| Connection | solder connection | |
| Design | vertical | |
| Type of mounting | central Mounting | |
| illuminated | No | |
| Actuator colour | metal | |
| contact surface | silver-plated | |
| Pin number | 1 pole | |
| Latching switching function | latching | |
| Breaking capacity | 4 A/125 VAC, 30 VDC | |
| Shift position | On-On |
| Country of origin | FR |
| Customs tariff number | 85365080 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
