NDS-04V | APEM

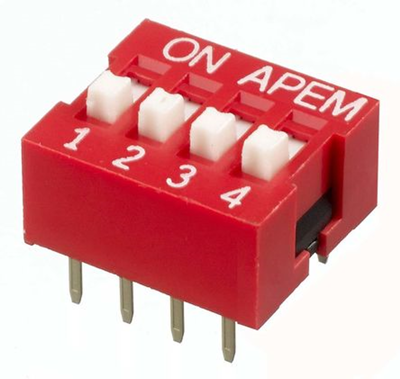

DIP switche, Off-On, 4 pole, straight, 25 mA/24 VDC, NDS-04V
Unit Price (€ / pc.)
1.4756 € *
Available: 1,817 pcs.
Total Price:
1.48 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4756 €
40 pcs.
1.2495 €
80 pcs.
1.2019 €
320 pcs.
1.1186 €
1000 pcs.
1.0472 €
*incl. VAT plus shipping costs
Subject to prior sale
Coding DIP switches, type APEM NDS/DP/DA.
Sealed connections; Grid: 2,54 mm. Breaking power: 25 mA/24 VDC. Contact resistance: max. 50 mohm (new condition). Insulation resistance (at 500 VDC): min. 100 Mohm between adjacent connections. Dielectric strength: 500 VAC (60 s). Connection/contact material: phosphor bronze, gold plated, with with nickel barrier layer.
Top adjustment, type NDS.
Actuating force: 10 N. Operating temperatures: –40 to +85 °C.
Technical attributes (type, number of switches, dimension A): NDS-04-V, 4 switches, A 11.52 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | DIP switche | |
| Connection | PCB pin | |
| Breaking capacity | 25 mA/24 VDC | |
| contact surface | gold-plated | |
| Shift position | Off-On | |
| Pin number | 4 pole | |
| Grid | 2.54 mm | |
| Actuation | on top | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 40 pieces |
| Country of origin | TW |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
