NDP-04-V | APEM
DIP switche, Off-On, 4 pole, straight, 25 mA/24 VDC, NDP-04-V
Unit Price (€ / pc.)
1.8088 € *
Available: 477 pcs.
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8088 €
39 pcs.
1.5470 €
78 pcs.
1.4756 €
312 pcs.
1.3685 €
1014 pcs.
1.2733 €
*incl. VAT plus shipping costs
Subject to prior sale

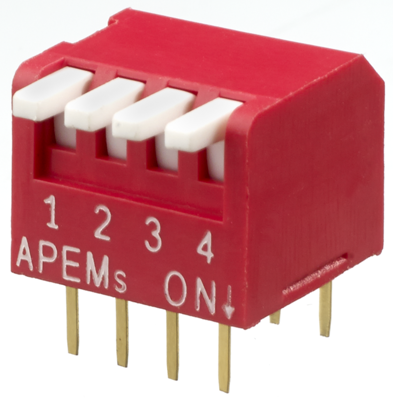

Coding slide switch, NDP-04-V, APEM
Piano-style NDP DIP switches in standard profile for reliable operation by secure snap-in. Available 2- to 12-pole, for through-hole mounting.
Features
- 2 to 12 ways
- Self-cleaning, wiping contacts
- Gold-plated connections
- Washable with tape seal
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | PCB pin | |
| Pin number | 4 pole | |
| Breaking capacity | 25 mA/24 VDC | |
| Actuation | lateral | |
| contact surface | gold-plated | |
| Grid | 2.54 mm | |
| Version | DIP switche | |
| Shift position | Off-On | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 39 pieces |
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
