25336NA | APEM

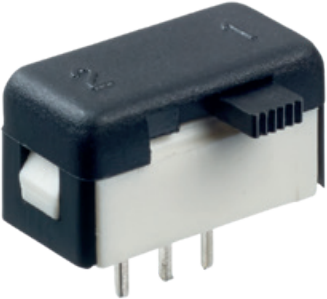

Slide switch, On-On, 1 pole, angled, 1 A/30 VDC, 25336NA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
4.9623 € *
Available: 18 pcs.
Total Price:
4.96 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9623 €
10 pcs.
4.3792 €
100 pcs.
3.8318 €
250 pcs.
3.6890 €
1000 pcs.
3.4629 €
*incl. VAT plus shipping costs
Subject to prior sale

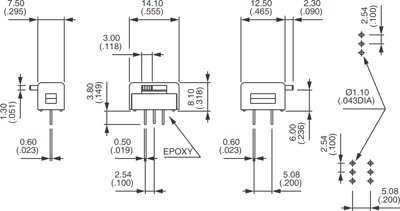

Slide switches, type APEM 25000N.
For PCB mounting, side actuator; Material housing base: PBT. Housing top and actuator: polyamide, glass fiber-reinforced. Contacts: silver. Breaking capacity: 1.0 A/30 VDC. Insulation resistance: min. 1000 Mohm on 500 VDC. Operating temperatures: - 40 to +85 °C.
With side raised actuator, type 253.
Technical attributes (type, number of poles, switching actions OFF, ON): 25336NA, single-pole, ON-ON
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | slide switch | |
| Shift position | On-On | |
| Pin number | 1 pole | |
| Actuation | lateral | |
| Design | angled | |
| Connection | PCB pin | |
| contact surface | silver-plated | |
| Grid | 2.54 mm | |
| Breaking capacity | 1 A/30 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
