Q6F1CXXY24E | APEM
Signal light, 24 V (AC), 24 V (DC), yellow, 10 mcd, Mounting Ø 6 mm, pitch 1.25 mm, LED number: 1, Q6F1CXXY24E
Unit Price (€ / pc.)
5.6406 € *
Standard delivery time from the manufacturer is: 13 Weeks

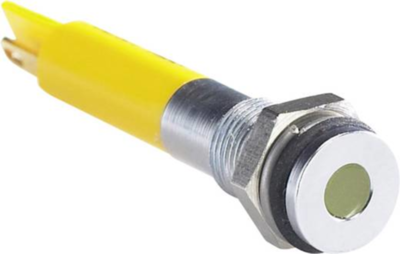

LED-Signal lamp, Q6F1CXXY24E, APEM
The Q6F1CXXY24E LED Indicator is a versatile and high-quality product designed for various applications. With a mounting hole diameter of 6 mm, it can easily be installed in different devices and systems. The flush bezel style adds a sleek and modern touch to any equipment. The solder lug fastons terminals ensure a secure and reliable connection. The bright chrome bezel finish gives it a polished and professional look. With fixed light illumination, it provides a steady and consistent indication. The yellow LED color adds visibility and clarity to the display. Operating at 24 VDC, it is compatible with most power systems. With an IP67 sealing rating, it is resistant to dust and water, making it suitable for both indoor and outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 6 mm | |
| Grid | 1.25 mm | |
| Assembly | central Mounting | |
| Connection | solder connection | |
| Diode Diameter | 3 mm | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | yellow | |
| Rated voltage (AC) | 24 V | |
| Luminous intensity | 0.01 cd | |
| Rated voltage (DC) | 24 V | |
| Number of LEDs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
