Q6F1CXXB24E | APEM
Signal light, 24 V (DC), blue, 12 mcd, Mounting Ø 6 mm, pitch 1.25 mm, LED number: 1, Q6F1CXXB24E
Unit Price (€ / pc.)
7.6517 € *
Standard delivery time from the manufacturer is: 10 Weeks

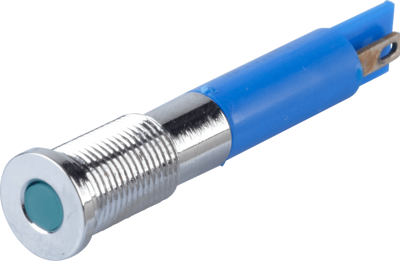

LED-Signal lamp, Q6F1CXXB24E, APEM
The Q6F1CXXB24E LED Indicator is a versatile and reliable solution for various applications. With a 6 mm Mounting Hole, it can be easily installed in any compatible panel or device. The Flush Bezel Style gives it a sleek and modern look, seamlessly integrating into the design. The Solder Lug Fastons 20 x 05 Terminals ensure secure and stable connections. Its Bright Chrome Bezel Finish adds a touch of elegance to any setup. The Fixed Light Type of Illumination provides steady and consistent lighting. With a Blue LED Color, it offers a vibrant and eye-catching display. Operating at 24 VDC Voltage, it delivers efficient performance. The IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.25 mm | |
| Farbe der Beleuchtung | blue | |
| Luminous intensity | 0.012 cd | |
| Rated current | 20 mA | |
| Connection | solder connection | |
| Assembly | PCB mounting | |
| Number of LEDs | 1 | |
| Rated voltage (DC) | 24 V | |
| Installation diameter | 6 mm | |
| Diode Diameter | 3 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
