Q14P1CXXR24E | APEM

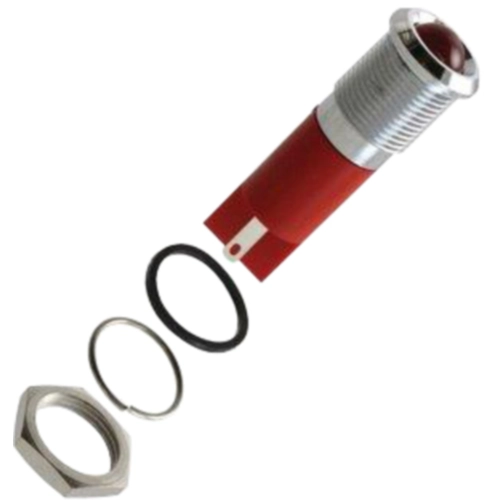

Signal light, 24 V (AC), 24 V (DC), red, 100 mcd, Mounting Ø 14 mm, pitch 1.25 mm, LED number: 1, Q14P1CXXR24E
LED-Signal lamp, Q14P1CXXR24E, APEM
The Q14P1CXXR24E LED Indicator is a versatile and reliable product that offers a seamless blend of functionality and aesthetic appeal. With a 14mm Mounting Hole, it can easily be installed in a variety of applications. The Prominent Bezel Style adds a touch of sophistication and elegance to any setting. The Solder Lug Fastons 28 x 08 Terminals ensure secure and efficient electrical connections. The Bright Chrome Bezel Finish adds a sleek and polished look to the indicator. With Fixed Light Type of Illumination, it provides a consistent and steady light output. The vibrant Red LED Color adds visibility and clarity to any situation. With a Voltage of 24 VDC, it is compatible with a wide range of electrical systems. The IP67 Sealing ensures protection against dust and water, making it suitable for both indoor and outdoor use.
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 14 mm | |
| Grid | 1.25 mm | |
| Assembly | central Mounting | |
| Connection | solder connection/2.8 mm | |
| Diode Diameter | 9.5 mm | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | red | |
| Rated voltage (AC) | 24 V | |
| Luminous intensity | 0.1 cd | |
| Rated voltage (DC) | 24 V | |
| Number of LEDs | 1 |
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85414100 |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
