Q14P1CXXG24E | APEM
Signal light, 24 V (DC), green, 60 mcd, Mounting Ø 14 mm, pitch 1.25 mm, LED number: 1, Q14P1CXXG24E
Unit Price (€ / pc.)
6.4379 € *
Standard delivery time from the manufacturer is: 10 Weeks

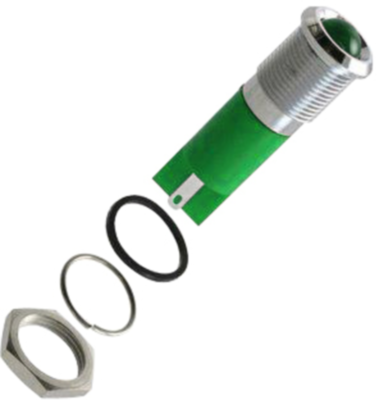

LED-Signal lamp, Q14P1CXXG24E, APEM
The Q14P1CXXG24E LED Indicator is a versatile and reliable solution for various applications. With its 14mm mounting hole, it can easily be installed in any compatible panel or device. The prominent bezel style adds a touch of sophistication to any design. Equipped with solder lug fastons, the terminals ensure secure and efficient electrical connections. The bright chrome bezel finish gives it a sleek and polished look. With fixed green illumination, it provides clear and visible indication. Operating at 24 VDC, it is suitable for a wide range of voltage requirements. The IP67 sealing ensures its durability and protection against dust and water. Upgrade your system with the Q14P1CXXG24E LED Indicator for reliable and efficient performance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 14 mm | |
| Grid | 1.25 mm | |
| Assembly | central Mounting | |
| Connection | solder connection/2.8 mm | |
| Diode Diameter | 9.5 mm | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | green | |
| Luminous intensity | 0.06 cd | |
| Rated voltage (DC) | 24 V | |
| Number of LEDs | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | GB |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
