Q14P1CXXB24E | APEM
Signal light, 24 V (DC), blue, 540 mcd, Mounting Ø 14 mm, pitch 1.25 mm, LED number: 1, Q14P1CXXB24E
Unit Price (€ / pc.)
8.5442 € *
Standard delivery time from the manufacturer is: 10 Weeks

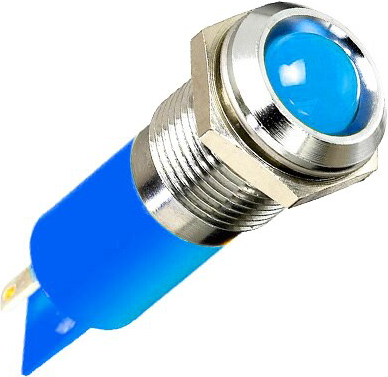

LED-Signal lamp, Q14P1CXXB24E, APEM
The Q14P1CXXB24E LED Indicator is a versatile and reliable product designed for various applications. With a mounting hole diameter of 14mm, it can be easily installed in different panels. Its prominent bezel style adds a touch of elegance to any device. The solder lug fastons terminals ensure a secure and stable connection. The bright chrome bezel finish enhances its visual appeal. The fixed blue light illumination provides clear and vibrant signaling. Operating at a voltage of 24 VDC, it offers efficient performance. With an IP67 sealing rating, it is highly resistant to dust and water, making it suitable for both indoor and outdoor use.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 1.25 mm | |
| Farbe der Beleuchtung | blue | |
| Luminous intensity | 0.54 cd | |
| Rated current | 20 mA | |
| Connection | solder connection/2.8 mm | |
| Assembly | central Mounting | |
| Number of LEDs | 1 | |
| Rated voltage (DC) | 24 V | |
| Installation diameter | 14 mm | |
| Diode Diameter | 9.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
