Q14F1CXXR24E | APEM
Signal light, 24 V (DC), red, 10 mcd, Mounting Ø 14 mm, pitch 1.25 mm, LED number: 1, Q14F1CXXR24E
Unit Price (€ / pc.)
5.7834 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
578.34 € *
Price list
Quantity
Price per unit*
100 pcs.
5.7834 €
500 pcs.
5.3788 €
*incl. VAT plus shipping costs
Subject to prior sale

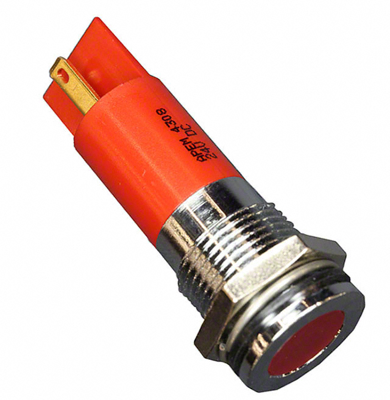

LED-Signal lamp, Q14F1CXXR24E, APEM
The Q14F1CXXR24E LED Indicator is a versatile and reliable product that meets all your illumination needs. With a mounting hole diameter of 14mm, it can easily be installed in any application. The flush bezel style gives it a sleek and modern look, while the bright chrome bezel finish adds a touch of elegance. The solder lug fastons terminals ensure secure and efficient connections. With its fixed red light illumination, this LED indicator provides clear and visible signaling. Operating at a voltage of 24 VDC, it is both efficient and cost-effective. The IP67 sealing ensures its durability and resistance to dust and water, making it suitable for various environments.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 24 V | |
| Luminous intensity | 0.01 cd | |
| Grid | 1.25 mm | |
| Installation diameter | 14 mm | |
| Diode Diameter | 9.5 mm | |
| Number of LEDs | 1 | |
| Connection | solder connection/2.8 mm | |
| Rated current | 20 mA | |
| Farbe der Beleuchtung | red | |
| Assembly | PCB mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414100 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
