IXP5S16M | APEM

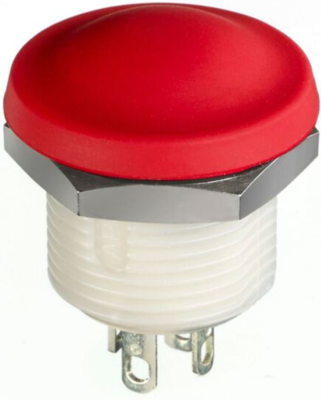

Pushbutton, 2 pole, red, unlit , 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP5S16M
Unit Price (€ / pc.)
18.6592 € *
Standard delivery time from the manufacturer is: 14 Weeks
Panel switch, IXP5S16M, APEM
The IXP5S16M it features a round elastomeric membrane actuator type, providing a comfortable and responsive user experience. The electrical functions of this switch are NC NO combined, ensuring versatility in its applications. With silver contacts, the IXP5S16M guarantees reliable and efficient electrical conductivity.
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- High sealing level, no space between actuator and bushing
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Latching switching function | groping | |
| Actuator colour | red | |
| Pin number | 2 pole | |
| Breaking capacity | 2 A/28 V | |
| contact surface | silver-plated | |
| Installation diameter | 11.9 mm | |
| Printed | No | |
| Protection class | IP67/IP69K | |
| Design | round | |
| illuminated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
