IXP5S13M | APEM

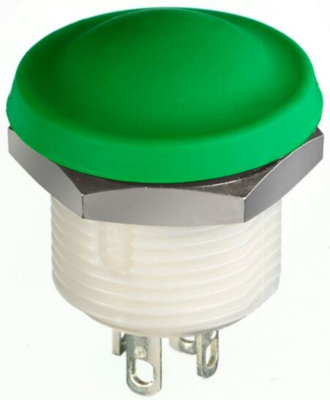

Pushbutton, 2 pole, green, unlit , 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP5S13M

Order No.: 12G3222
EAN: 4099889191479
MPN:
IXP5S13M
Series: IX
IXP5S13M APEM Pushbutton Switches
Image may differ
Unit Price (€ / pc.)
18.6592 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
466.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
18.6592 €

Panel switch, IXP5S13M, APEM

The IXP5S13M is designed with a round elastomeric membrane actuator, providing a comfortable and responsive touch experience. In terms of electrical functions, it offers both Normally Closed (NC) and Normally Open (NO) combined options, ensuring flexibility in various applications. The contacts of this switch are made of high-quality silver, ensuring reliable and efficient performance.

Features

  • Backlighted marking in a compact case
  • Strong tactile feedback
  • High sealing level, no space between actuator and bushing
Technical specifications
Filter Property Value
Installation diameter 11.9 mm
Latching switching function groping
Breaking capacity 2 A/28 V
Connection solder connection
Protection class IP67/IP69K
Design round
Pin number 2 pole
contact surface silver-plated
illuminated No
Actuator colour green
Printed No
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
