IXP5S12M | APEM

Pushbutton, 2 pole, black, unlit , 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP5S12M

Order No.: 12G3221
EAN: 4099889191462
MPN:
IXP5S12M
Series: IX
IXP5S12M APEM Pushbutton Switches

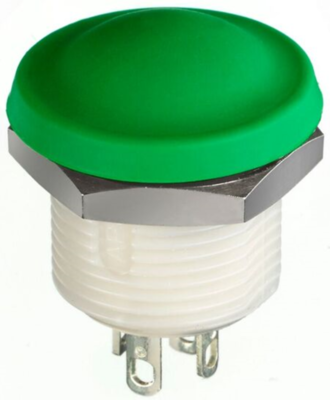

Image may differ
Unit Price (€ / pc.)
18.6592 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
466.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
18.6592 €

Panel switch, IXP5S12M, APEM

The IXP5S12M it features a round elastomeric membrane actuator, giving it a unique and modern look. In terms of electrical functions, it offers both Normally Closed (NC) and Normally Open (NO) combined functionality, providing flexibility in its usage. The contacts of the switch are made of silver, ensuring efficient and reliable electrical conductivity.

Features

  • Backlighted marking in a compact case
  • Strong tactile feedback
  • High sealing level, no space between actuator and bushing
Technical specifications
Filter Property Value
Installation diameter 11.9 mm
Latching switching function groping
Breaking capacity 2 A/28 V
Connection solder connection
Protection class IP67/IP69K
Design round
Pin number 2 pole
contact surface silver-plated
illuminated No
Actuator colour black
Printed No
Logistics
Property Value
Country of origin FR
Customs tariff number 85365080
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
