IXP3W06W | APEM

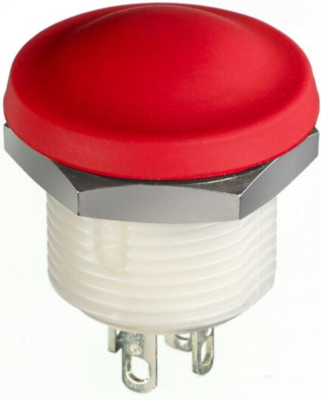

Pushbutton, 1 pole, red, illuminated (white), 0.1 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP3W06W
Unit Price (€ / pc.)
28.4172 € *
Standard delivery time from the manufacturer is: 14 Weeks
Pushbutton, IXP3W06W, APEM
Pushbutton NO, 24 AWG wires, Gold plated, Fully Illuminated, Red actuator
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- NO or NC/NO
- High sealing level, no space between actuator and bushing (IP67/IP69K)
Technical specifications
| Printed | No | |
| Installation diameter | 11.9 mm | |
| contact surface | gold-plated | |
| Breaking capacity | 0.1 A/28 V | |
| Actuator colour | red | |
| Farbe der Beleuchtung | white | |
| Pin number | 1 pole | |
| Design | round | |
| illuminated | Yes | |
| Connection | wire connection | |
| Protection class | IP67/IP69K | |
| Latching switching function | groping |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
