IXP3S13M | APEM
Pushbutton, 1 pole, green, unlit , 2 A/28 V, mounting Ø 11.9 mm, IP67/IP69K, IXP3S13M
Unit Price (€ / pc.)
   15.3272 €  *
   Standard delivery time from the manufacturer is: 14 Weeks

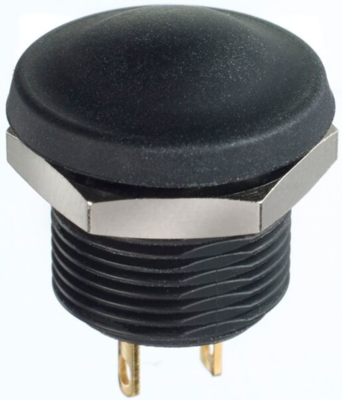

 Panel switch, IXP3S13M, APEM
The IXP3S13M is designed with a round elastomeric membrane actuator, providing a smooth and comfortable user experience. Its electrical function is normally open (NO), offering a reliable and responsive operation. The contacts of this switch are made of silver, ensuring excellent conductivity and longevity. Whether used in industrial control panels or consumer electronics, the IXP3S13M panel switch guarantees a seamless and efficient performance.
Features
- Backlighted marking in a compact case
- Strong tactile feedback
- High sealing level, no space between actuator and bushing
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| contact surface | silver-plated | |
| illuminated | No | |
| Protection class | IP67/IP69K | |
| Latching switching function | groping | |
| Breaking capacity | 2 A/28 V | |
| Installation diameter | 11.9 mm | |
| Design | round | |
| Actuator colour | green | |
| Connection | solder connection | |
| Pin number | 1 pole | |
| Printed | No |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
