IAR3F1100 | APEM
Pushbutton, 1 pole, blue, unlit , 2 A/24 V, mounting Ø 16.2 mm, IP65/IP67, IAR3F1100
Unit Price (€ / pc.)
12.9115 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
322.79 € *
Price list
Quantity
Price per unit*
25 pcs.
12.9115 €
50 pcs.
12.3522 €
75 pcs.
11.7215 €
100 pcs.
10.9718 €
*incl. VAT plus shipping costs
Subject to prior sale

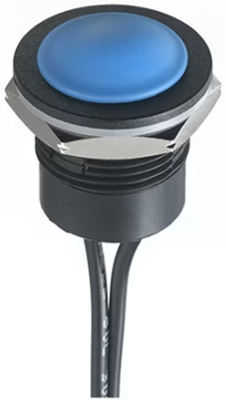

Pushbutton, IAR3F1100, Apem
The IA actuator consists of a polyurethane membrane which depresses when the switch is actuated. The membrane is press fitted onto the bushing, providing an IP67 front of panel seal and ensuring high resistance to frost and external contaminants.
Features
- Resistant to frost, sand and hydrocarbons
- Tactile feedback
- Front panel sealed up to IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Actuator colour | blue | |
| Breaking capacity | 2 A/24 V | |
| illuminated | No | |
| Printed | No | |
| Connection | wire connection | |
| Design | round | |
| contact surface | gold-plated | |
| Installation diameter | 16.2 mm | |
| Wall thickness | 7 mm | |
| Protection class | IP65/IP67 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
