FDAP1F1282F15 | APEM

Pushbutton switch, 2 pole, black, illuminated  (red/green), 4 A/12 V, mounting Ø 24.2 mm, IP69K, FDAP1F1282F15

Order No.: 11G8623
EAN: 4099889187083
MPN:
FDAP1F1282F15
Series: FD

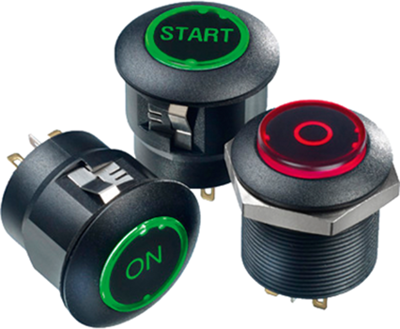

FDAP1F1282F15 APEM Pushbutton Switches Image 1

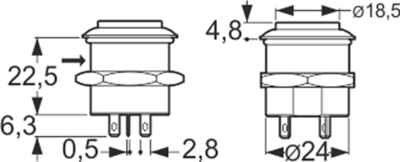

FDAP1F1282F15 APEM Pushbutton Switches Image 2
Image may differ
Unit Price (€ / pc.)
41.7690 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
4,176.90 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 pcs.
41.7690 €

Double icon illuminated pushbuttons, latching and momentary, type APEM Serie FD.

Electable integrated icons and illumination colors. Thread socket assembly (Snap in mounting on inquiry); Breaking capacity: 4.0 A 12 VDC (silver contacts), 200 mA 12 VDC (gold-plated contacts). Contact resistance: max. 50 mohm (new state). Insulation resistance: 1.0 Gohm on 500 VDC. Degree of protection: threaded bushing IP 69K. Ambient temperatures: max. –40 °C to +75 °C.

Pushbutton switch with silver contacts.

Technical attributes (type, switching function, icons and colors): FDAP1F1282F15, E - A, "I" green, "O" red

Technical specifications
Printed Yes
Installation diameter 24.2 mm
contact surface silver-plated
Breaking capacity 4 A/12 V
Actuator colour black
Farbe der Beleuchtung red/green
Pin number 2 pole
Design round
illuminated Yes
Connection solder connection
Protection class IP69K
Latching switching function latching
Logistics
Country of origin FR
Customs tariff number 85365080
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
