AV24LB404 | APEM
Vandal-proof pushbutton, 1 pole, silver, unlit , 5 A/250 V, mounting Ø 24.2 mm, IP65, AV24LB404
Unit Price (€ / pc.)
30.9995 € *
Standard delivery time from the manufacturer is: 18 Weeks

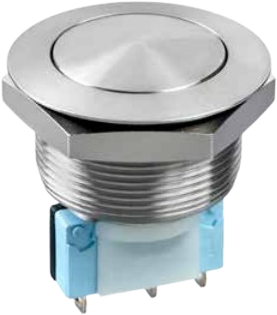

Pushbutton switch, AV24LB404, APEM
Security pushbutton switch with large actuator, front panel sealing.
Features
- Large actuator
- Low profile option
- Anodized actuators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wall thickness | 1.0-6.0 mm | |
| Installation diameter | 24.2 mm | |
| contact surface | nickel-plated | |
| Protection class | IP65 | |
| Printed | No | |
| Connection | solder connection | |
| Latching switching function | groping | |
| Actuator colour | silver | |
| illuminated | No | |
| Vandal-proof | Yes | |
| Pin number | 1 pole | |
| Design | round | |
| Breaking capacity | 5 A/250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
