AV091001A200 | APEM

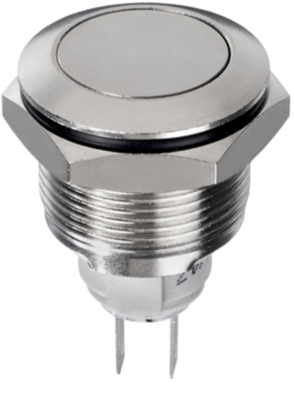

Vandal-proof pushbutton, 1 pole, silver, unlit , 1 A/250 V, mounting Ø 16 mm, IP65, AV091001A200
Unit Price (€ / pc.)
18.4807 € *
Standard delivery time from the manufacturer is: 18 Weeks
Panel switch, AV091001A200, APEM
The AV091001A200 panel switch offers a range of electrical functions for your convenience. Whether you need to turn something on or off, this switch has got you covered. With its reliable terminals, you can trust that your connections will be secure. The bushing and actuator materials are made of standard nickel plated brass, ensuring durability and longevity.
Features
- Latching action
- 3 terminal types
- Panel sealing option
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder connection | |
| Actuator colour | silver | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Vandal-proof | Yes | |
| Protection class | IP65 | |
| Design | round | |
| illuminated | No | |
| contact surface | silver-plated | |
| Breaking capacity | 1 A/250 V | |
| Printed | Yes | |
| Installation diameter | 16 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
