18235WWCD-3 | APEM

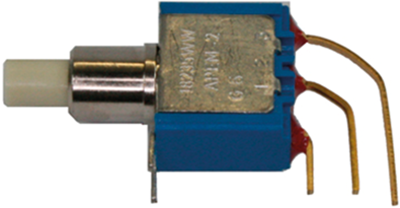

Pushbutton, 1 pole, green, unlit , 100 mA/30 V, 18235WWCD-3
Unit Price (€ / pc.)
9.4605 € *
Available: 182 pcs.
Total Price:
9.46 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4605 €
10 pcs.
8.3062 €
25 pcs.
7.7469 €
50 pcs.
7.4137 €
100 pcs.
7.0329 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature pushbutton switches with snap-action contact element, type APEM 18000.
Contact type: CO. Contact material: brass, gold-plated. Contact rating: max. 100 mA/30 VDC. Contact resistance (new condition): max. 50 mohm. Insulation resistance: min. 1000 Mohm. Dielectric strength: min. 1000 VRMS/50 Hz. Housing material: PBT. Actuator: glass fiber-reinforced polyamide. Connection sealing: Epoxy. Contact travel: 0.5 mm. Tightening torque: max. 1.25 N/m. Operating temperatures: - 30 to +65 °C.

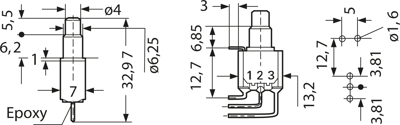

With angled solder pins for vertical installation.
Technical attributes (type, number of poles, contact material): 18235WWCD-3, single-pole, gold-plated brass
Technical specifications
| Filter | Property | Value |
|---|---|---|
| illuminated | No | |
| contact surface | gold-plated | |
| Actuator colour | green | |
| Printed | No | |
| Pin number | 1 pole | |
| Breaking capacity | 100 mA/30 V | |
| Latching switching function | groping | |
| Vandal-proof | No | |
| Connection | PCB pin | |
| Design | round |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
