18235WAD-3 | APEM
Pushbutton, 1 pole, green, unlit , 1 A/125 V, 18235WAD-3
Unit Price (€ / pc.)
8.1634 € *
Available: 87 pcs.
Total Price:
8.16 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1634 €
10 pcs.
7.1876 €
50 pcs.
6.6759 €
150 pcs.
6.3903 €
500 pcs.
6.0571 €
*incl. VAT plus shipping costs
Subject to prior sale
Miniature pushbutton switches with snap-action contact element, type APEM 18000.
Contact type: CO. Contact material: silver, gold-plated. Contact rating: 1.0 A/125 VAC, 1.0 A/30 VDC. Contact resistance (new condition): max. 50 mohm. Insulation resistance: min. 1000 Mohm. Dielectric strength: min. 1000 VRMS/50 Hz. Housing material: PBT. Actuator: glass fiber-reinforced polyamide. Connection sealing: Epoxy. Contact travel: 0.5 mm. Tightening torque: max. 1.25 N/m. Operating temperatures: - 30 to +65 °C.

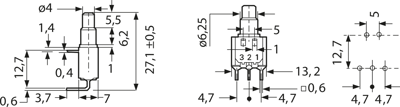

With angled solder pins for horizontal installation.
Technical attributes (type, number of poles, contact material): 18235WAD-3, single-pole, gold-plated silver
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Design | round | |
| contact surface | gold-plated | |
| illuminated | No | |
| Connection | PCB pin | |
| Actuator colour | green | |
| Printed | No | |
| Latching switching function | groping | |
| Pin number | 1 pole | |
| Vandal-proof | No | |
| Breaking capacity | 1 A/125 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
