PBAR2AF6000 | APEM
Piezo switch, On-Off, mounting Ø 22.2 mm, unlit, IP68/IP69K, PBAR2AF6000
Unit Price (€ / pc.)
   30.1665 €  *
   Standard delivery time from the manufacturer is: 10 Weeks

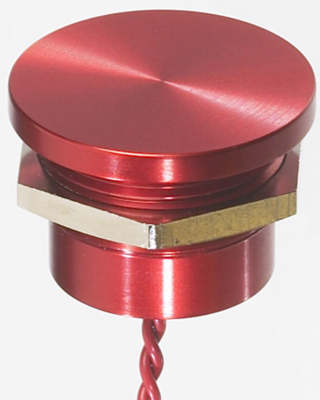

 Piezo switch, PBAR2AF6000, APEM
The PBAR2AF6000 switch is a versatile device designed to enhance electrical functions in various applications. With its sleek design and reliable performance, it is the perfect choice for any project requiring precise control. The switch offers a range of electrical functions, allowing users to easily customize their settings to meet specific requirements. Additionally, the PBAR2AF6000 features convenient flying leads terminals, making installation easier.
Features
- Easy to clean metal surface
- Very long life expectancy
- Ring illumination
 Technical specifications

 | Filter | Property | Value |
|---|---|---|
| Switching Voltage (DC) | 24 V | |
| Color of body | red | |
| illuminated | No | |
| Latching switching function | On-Off | |
| switching current | 200 mA | |
| Installation diameter | 22.2 mm | |
| Switching Voltage (AC) | 24 V | |
| Connection | stranded wires | |
| Degree of protection (IP) | IP68/IP69K |
 Download
  Logistics

 | Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
 Compliance

 | Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
