CPB2110000KGSS | APEM

Piezo switch, On-Off, mounting Ø 19 mm, illuminated, red/green, aluminum, IP68/IP69K, CPB2110000KGSS

Order No.: 12G1031
EAN: 4099889199758
MPN:
CPB2110000KGSS
Series: CP

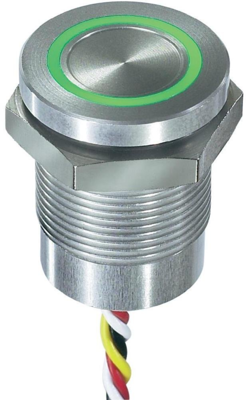

CPB2110000KGSS APEM Piezo Switches Image 1
CPB2110000KGSS APEM Piezo Switches Image 2
Image may differ
Unit Price (€ / pc.)
53.4786 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
1,069.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
53.4786 €

Capacitive switch, CPB2110000KGSS, APEM

Features

  • Activated by the touch of a finger
  • 50 million cycles
  • Auto-calibration function
Technical specifications
Filter Property Value
Farbe der Beleuchtung red/green
Actuator round
Lighting voltage 24 VDC
Shell Material aluminum
Installation diameter 19 mm
Latching switching function On-Off
Degree of protection (IP) IP68/IP69K
illuminated Yes
switching current 200 mA
Connection stranded wires
Logistics
Property Value
Customs tariff number 85365080
Country of origin FR
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
