LK6BGB126-M3 | APEM

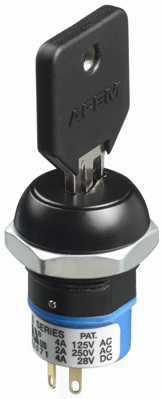

Key switch LK6BGB126-N3
Unit Price (€ / pc.)
21.7056 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
21.71 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7056 €
10 pcs.
20.7655 €
25 pcs.
19.6231 €
50 pcs.
18.6116 €
100 pcs.
17.5882 €
*incl. VAT plus shipping costs
Subject to prior sale
Key switch, LK6BGB126-M3, APEM
Single and double pole models for front panel mounting with solder lugs. Switch positions at 45° and 90° possible. Supplied with two standard beard keys. UL marking available for all models with switching capacity 4A 125VAC. Special requests or specific cable connections possible.
Features
- Single and double pole available
- Up to four key positions
- Electrical life: min. 6,000 cycles
- Contacts made of gold-plated copper alloy
- UL approval
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 19 mm | |
| contact surface | gold-plated | |
| Trigger position key | 1 | |
| Rotation angle | 45° | |
| Connection | solder connection | |
| Latching switching function | On-Off/Off-On | |
| Pin number | 2 pole | |
| Breaking capacity | 4 A/125 VAC, 28 VDC | |
| Version | latching |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
