HF45S10U | APEM
Finger shift joystick, 3 shafts, groping, plug-in connection, IP67, HF45S10U
Unit Price (€ / pc.)
297.3334 € *
Standard delivery time from the manufacturer is: 12 Weeks

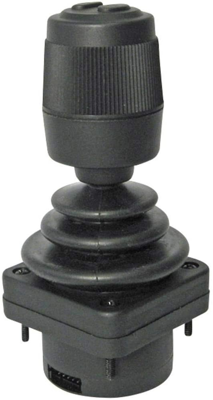

Fingerjoystick, HF45S10U, APEM
The joysticks of the HF series are multi-axis, contactless and therefore durable joysticks for finger operation. The joysticks, whose installation depth is minimized, are equipped with the latest Hall sensor technology and are therefore suitable for applications where permanent precision and accuracy is required. Available with multiple ergonomic knob types in one, two or three axis versions, this series is ideal for CCTV control panels, robotics, medical equipment and audio-video production facilities.
Features
- Housing with connector
- Low installation depth < 26 mm
- 1, 2 and 3 axes
- Optional 24VDC supply
- Optional digital output
- Optional USB 2.0 HID interface
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Handle | round | |
| Voltage | 5 VDC | |
| Connection | plug-in connection | |
| Latching switching function | groping | |
| Degree of protection (IP) | IP67 | |
| Version | 3 shafts |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 84718000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
