A01ES-DM+A0154B-D | APEM
Emergency stop, rotary release, mounting Ø 24 mm, unlit, 250 V, 1 Form B (N/C), A01ES-DM+A0154B-D
Unit Price (€ / pc.)
24.2165 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
24.22 € *
Price list
Quantity
Price per unit*
1 pcs.
24.2165 €
10 pcs.
21.2891 €
50 pcs.
19.8373 €
150 pcs.
18.9686 €
500 pcs.
18.0166 €
*incl. VAT plus shipping costs
Subject to prior sale

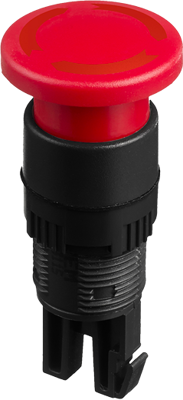

Emergency stop switch, A01ES-DM+A0154B-D, APEM
The A01ES-DM+A0154B-D is ergonomically designed for the users. With 4 actuator styles featuring a compact and modern design (dia.16 mm), this emergency stops is safe and easy to operate (Push to shut-off, twist to release) and features green locked/unlocked status indicators for a quick and easy visual status control.
Features
- 5 prominent red actuator styles
- Locked/unlocked status indicator
- Panel sealed to IP65
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Installation diameter | 24 mm | |
| Type of labeling | white | |
| Rated voltage | 250 V | |
| illuminated | No | |
| Type of mounting | threaded ring | |
| Latching switching function | 1 Form B (N/C) | |
| Resetting | rotary release | |
| Collar shape of the front frame | round | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
