AD822ARZ | ANALOG DEVICES

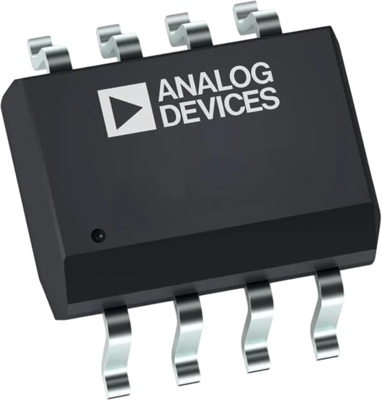

Operational amplifier, SOIC-8, AD822ARZ
Order No.: 40S1205
MPN:
AD822ARZ
Unit Price (€ / pc.)
4.9147 € *
Available in 5 Days: 5,859 pcs. - if ordered today
Low Power FET-Input Op Amp, AD822ARZ, ANALOG DEVICES
The AD822ARZ is a dual precision, low power FET input op amp that can operate from a single supply of 5 V to 30 V or from dual supplies of ±2.5 V to ±15 V. It has true single-supply capability with an input voltage range extending below the negative rail, allowing the AD822ARZ to accommodate input signals below ground while in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range.
Features
- True single-supply operation
- High load drive
- Excellent ac performance for low power
- Good dc performance
- Low noise
Applications
- Battery-powered precision instrumentation
- Photodiode preamps
- Active filters
- Medical instrumentation
- Low power references and regulators
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | SOIC-8 | |
| Assembly | SMD | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Version | rail-to-rail operational amplifier |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| Country of origin | MY |
| MSL | MSL 1 |
| Original Packaging | Bar with 98 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
