ADM2481BRWZ-RL7 | ANALOG DEVICES

Isolated RS-485 Transceiver, SOIC-16, ANALOG DEVICES ADM2481BRWZ-RL7

Order No.: 76S3912
EAN: 4099879085283
MPN:
ADM2481BRWZ-RL7
Series: iCoupler
ADM2481BRWZ-RL7 ANALOG DEVICES Logic Devices

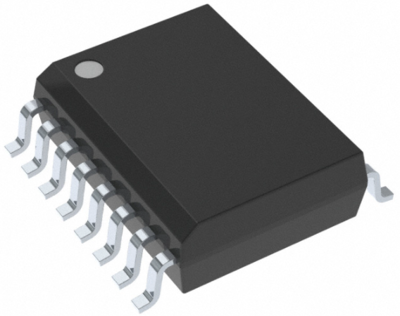

Image may differ
Unit Price (€ / pc.)
4.2602 € *
Available: 5 pcs.
Total Price:
4.26 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
4.2602 €

Digital isolation, ADM2481BRWZ-RL7, ANALOG DEVICES

The ADM2481BRWZ-RL7 is a differential bus transceiver that is an integrated, galvanically isolated component designed for bidirectional data communication on balanced, multipoint bus transmission lines.

Features

  • RS-485 transceiver with electrical data isolation
  • 500 kbps data rate
  • Slew rate-limited driver outputs
  • True fail-safe receiver inputs
  • 256 nodes on bus

Applications

  • Low power RS-485/RS-422 networks
  • Isolated interfaces
  • Building control networks
  • Multipoint data transmission systems
Technical specifications
Filter Property Value
Data transmission rate 500000 mb/s
Assembly SMD
max. operating temperature 85 °C
Enclosure SOIC-16
Product type Isolated RS-485 Transceiver
min. operating temperature -40 °C
Surge blocking voltage V RMS 2500 V
Input voltage 0.5 V
Number of channels 3
Logistics
Property Value
Country of origin TW
Customs tariff number 85423390
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
