ADG1434YRUZ | ANALOG DEVICES

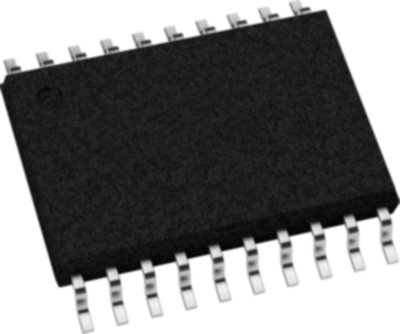

Quad SPDT iCMOS Switch, TSSOP-20, ANALOG DEVICES ADG1434YRUZ
Order No.: 40S1237
EAN: 4099879089106
MPN:
ADG1434YRUZ
Unit Price (€ / pc.)
6.6045 € *
Available: 271 pcs.
Analog switch ICs, Multiplexer, ADG1434YRUZ, ANALOG DEVICES
The ADG1434YRUZ is a monolithic industrial CMOS analog switch that comprises three independently selectable single-pole, double-throw (SPDT) switches and four independently selectable SPDT switches, respectively.
Features
- 4.7 Ω maximum on resistance at 25°C
- Up to 115 mA continuous current per channel
- Rail-to-rail operation
- 0.5 Ω on-resistance flatness
Applications
- Relay replacement
- Audio and video routing
- Automatic test equipment
- Data acquisition systems
- Temperature measurement systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Input voltage | 3 V | |
| Product type | Quad SPDT iCMOS Switch | |
| Enclosure | TSSOP-20 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85423390 |
| MSL | MSL 1 |
| Original Packaging | Bar with 75 pieces |
| Country of origin | MY |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 6/8/11 |
