SQ96DE 300V | AMS
Display instrument, Front panel, Moving-iron mechanism, AC
Unit Price (€ / pc.)
38.0562 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
38.06 € *
Price list
Quantity
Price per unit*
1 pcs.
38.0562 €
5 pcs.
36.2236 €
10 pcs.
34.2720 €
*incl. VAT plus shipping costs
**Subject to prior sale

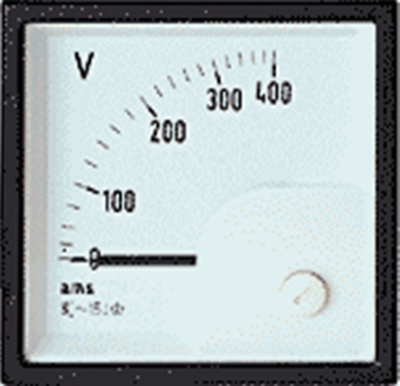

Display instruments, type AMS SQ 96 DE.

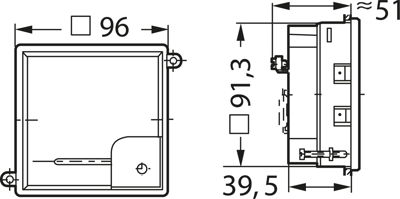

Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 96 x 96 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 92 x 92 mm
Type: 300 V
Technical specifications
| AC or DC measurement possible | AC | |
| Width | 96 mm | |
| Width of cut-out | 92 mm | |
| Height | 96 mm | |
| Height of cut-out | 92 mm | |
| max. Voltage | 300 V | |
| Assembly | snap-in |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303370 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
