SQ72DE 60V | AMS
Display instrument, Front panel, Moving-iron mechanism, AC, SQ72DE 60V
Unit Price (€ / pc.)
73.899 € *
Standard delivery time from the manufacturer is: 2 Weeks

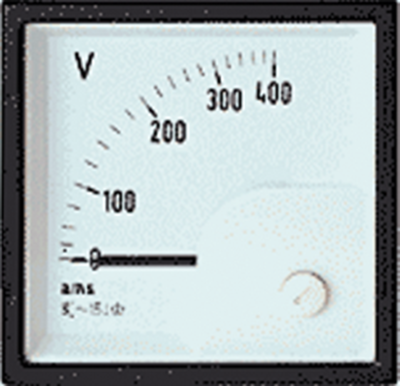

Display instruments, type AMS SQ 72 DE.
Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 72 x 72 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 68 x 68 mm
Type: 60 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Voltage | 60 V | |
| Height of cut-out | 68 mm | |
| Width | 72 mm | |
| Height | 72 mm | |
| Assembly | front panel mounting | |
| Width of cut-out | 68 mm | |
| AC or DC measurement possible | AC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 90303370 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
