ZQ96DS | AMS
Panel frequency meter, ZQ96DS, 96 x 96, 97 mm
Unit Price (€ / pc.)
276.1395 € *
Standard delivery time from the manufacturer is: On Request
class 0.5 pointer frequency meter. The case is compliant with DIN 43700.

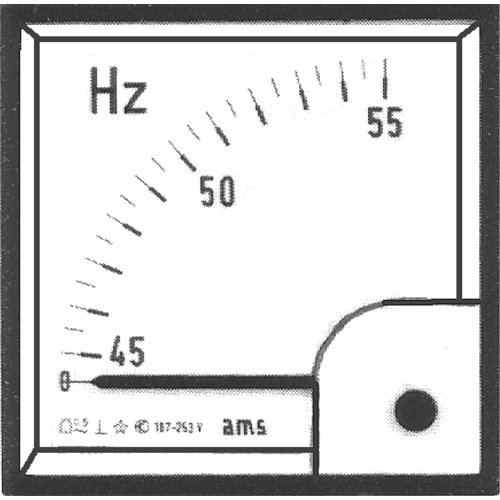

Measuring range: in 45-50-55 Hz divisions
Rated voltage: 220 to 231 V
Measuring system: moving-coil core magnet with integrated measuring transducer
Bearing: needle bearing with spring loaded jewel bearing
Pointer: knife-edge needle pointer
Test voltage: 2.0 kV
Voltage fluctuation: - 15 to +10 %
Warm-up time: approx. 5.0 minutes
Housing: polycarbonate, self-extinguishing
Mounting: snap-on fastener

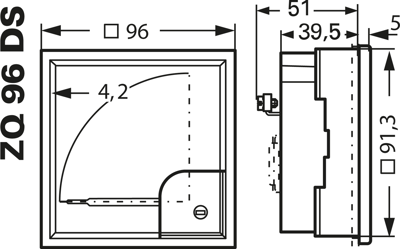

Technical features (type, bezel dimensions, scale length):
ZQ96DS, 96 x 96, 97 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Counting frequency | 55 Hz | |
| Assembly | built-in mounting | |
| Width | 96 mm | |
| Height | 96 mm | |
| Voltage | 230 VAC | |
| Installation depth | 97 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 90303370 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
