P35GT, 0-PUNKT MITTE | AMS

Display instrument, P35GT, 0-PUNKT MITTE

Order No.: 16K212
EAN: 4099891454685
MPN:
P35GT, 0-PUNKT MITTE
Sk 3307
Series: P35

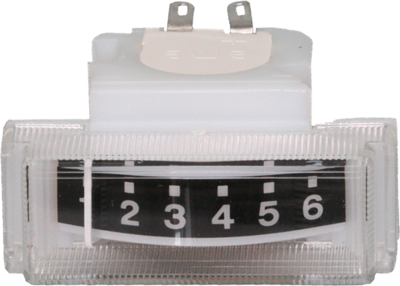

P35GT, 0-PUNKT MITTE AMS Pulse Counters Image 1

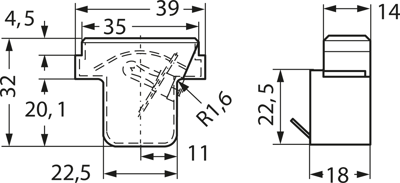

P35GT, 0-PUNKT MITTE AMS Pulse Counters Image 2
Image may differ
Unit Price (€ / pc.)
16.065 € *
Next delivery: 9 pcs. on 2025-11-06
Total Price:
16.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.065 €

Display instrument P 35 GT

Moving-coil mechanism, miniature version

Measuring range: -100 to 100 µA ±20 % (internal resistance 1750 ohm)

Scale numbering: center zero 3-0-3

Scale background: black

Scaling and numbering: white, transparent

Connection: solder lugs.

A corresponding illumination set with a 12 V/30 mA glass socket lamp is available.

Technical specifications
Filter Property Value
Width 32 mm
Degree of protection (IP) IP54
Counting frequency 60 Hz
Installation depth 35 mm
Connection solder lugs
Height 22.5 mm
Voltage 12 V
Assembly built-in mounting
Logistics
Property Value
Customs tariff number 90303370
Country of origin TN
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
