SQ72DE 25A | AMS

Name: Panel measuring device, rotary iron measuring device, class 1.5, 25 A, AMS SQ72DE 25A
Brand: AMS
SKU: 15K360
Availability: InStock

Panel measuring device, rotary iron measuring device, class 1.5, 25 A, AMS SQ72DE 25A

Order No.: 15K360

EAN: 4099891453435

MPN:

SQ72DE 25A

Series: SQ 72 DE

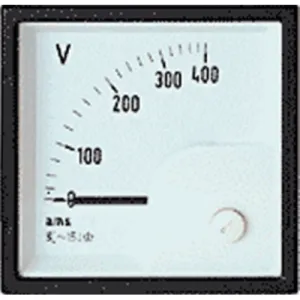

Image may differ

Key Specification:

Product type panel measuring device

Version rotary iron measuring device, class 1.5

Min. current 0 A

Max. current 25 A

AC or DC measurement possible AC

Show variants: 9

Download Datasheet Technical specifications

Unit Price (€ / pc.)

64.0815 € *

Standard delivery time from the manufacturer is: 2 Weeks

Total Price:

64.08 € *

*incl. VAT plus shipping costs

Subject to prior sale

Description

Display instruments, type AMS SQ 72 DE.

Class 1.5 moving iron instrument with magnetic shielding. For AC current/voltage. Square control panel mount housing to DIN 43700. Black 72 x 72 mm slim-line frame; Housing: polycarbonate (self-extinguishing). With standard removable scale. Snap-on mount. Control panel cutout: 68 x 68 mm

Type: 25 A

Technical specifications

Filter	Property	Value
	Connection	screw connection
	Width	72 mm
	Min. current	0 A
	Max. current	25 A
	Assembly	snap-in
	Version	rotary iron measuring device, class 1.5
	AC or DC measurement possible	AC
	Product type	panel measuring device
	Height	72 mm
